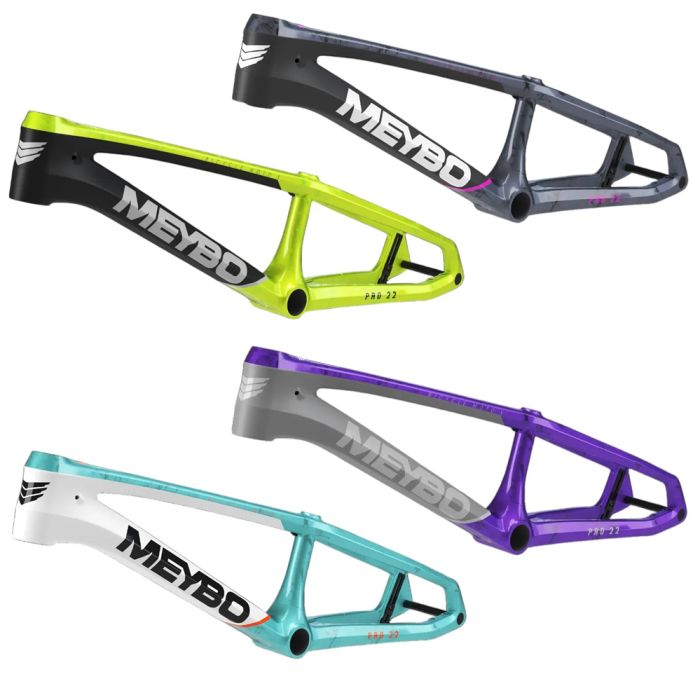

Meybo HSX 2026 Carbon BMX Race Frame

As low as £1,499.99
SKU
MYBO-FRME-HSXC-2026

Lighter. Stronger. Stiffer. Faster.  The World Cup-winning Meybo HSX Carbon is the flagship of the Meybo lineup — engineered for elite racers who demand nothing but the best... Read More.....

Lighter. Stronger. Stiffer. Faster.  The World Cup-winning Meybo HSX Carbon is the flagship of the Meybo lineup — engineered for elite racers who demand nothing but the best. With revolutionary frame geometry and cutting-edge carbon construction, the HSX Carbon offers unmatched power transfer, precision handling, and race-proven performance.
Designed to Win; whether you're on the World Cup circuit or racing at the national level, the Meybo HSX Carbon is engineered to get the absolute best out of every race — and every rider.
If you're chasing podiums, the 2026 HSX Carbon is your ultimate tool.

More colours are available for special order, if you can't see the size/colour combo you want, drop us a line, and we will do our best to special order for you!

Features

  • UD Carbon Formed Tubes - Premium unidirectional carbon fibre for maximum strength-to-weight ratio.
  • 30% Stiffer Frame - Delivers instant power transfer and acceleration off the gate.
  • Tapered 1.5” Headtube - Increased front-end stiffness for precision cornering and stability.
  • Advanced Bottom Bracket Options - BB86 for Youth sizes, BB386EVO for sizes Pro and up - Optimized for stiffness and pedalling efficiency.
  • Flat Mount Disc Brake System - Modern braking performance with clean aesthetics and reduced weight.
  • Fixed 15mm Rear Dropouts with fixed chainstay - Keeps chainstay length consistent regardless of gearing. Ensures fast, straight rear wheel alignment.
  • Internal Brake Hose Routing - Clean, aerodynamic cable management.
  • Meybo Chain Tensioner System - Ensures precise chain setup and alignment.
  • Integrated Seat Clamp System - Sleek design and reduced overall frame weight.
  • Derailleur-Ready - Versatile for geared setups.
  • Compatible with Oversize (OS) Wheels

Specification

  • Seat Post Size: Expert/Expert XL - 25.4mm / Pro Upward - 27.2mm
  • Bottom Bracket Size: Expert/Expert XL – BB86 / Pro Upward: BB386EVO
  • Flat Mount Brake
  • Headset: Tapered Integrated 1.5”
  • Rear 15mm Axle Included (Only compatible with 15mm bolt thru hubs)

Geometries

Expert:

  • Top Tube: 19.69”
  • Chain Stay: 13.39”
  • Head Angle: 73.5°
  • Seat Angle: 71°
  • Weight: 1213g

Expert XL:

  • Top Tube: 20.67”
  • Chain Stay: 13.58”
  • Head Angle: 73.5°
  • Seat Angle: 71°
  • Weight: 1237g

Pro:

  • Top Tube: 21.10”
  • Chain Stay: 14.52”
  • Head Angle: 74°
  • Seat Angle: 71°
  • Weight: 1240g

Pro XL:

  • Top Tube: 21.49”
  • Chain Stay: 14.96”
  • Head Angle: 74°
  • Seat Angle: 71°
  • Weight: 1376g

Pro XXL:

  • Top Tube: 21.96”
  • Chain Stay: 15.19”
  • Head Angle: 74°
  • Seat Angle: 71°
  • Weight: 1390g

Pro XXXL:

  • Top Tube: 22.48”
  • Chain Stay: 15.47”
  • Head Angle: 74°
  • Seat Angle: 71°
  • Weight: 1417g

Pro XXXXL:

  • Top Tube: 22.95”
  • Chain Stay: 15.62”
  • Head Angle: 74.3°
  • Seat Angle: 71°
  • Weight: 1446g

Cruiser:

  • Top Tube: 22.20”
  • Chain Stay: 15.47”
  • Head Angle: 74°
  • Seat Angle: 71°
  • Weight: 1509g

Important Installation & Safety Notes
Installation Required by Professional Mechanic Only - Improper setup may result in frame damage and will void your warranty.
Crash or Impact? Inspect Immediately - Carbon fibre can hide damage — always have a mechanic inspect the frame after a crash.
Seatpost Use Warning - Use only a standard seatpost up to 150mm in length. Longer posts may damage the frame.
Racing Use Only - The Meybo HSX Carbon is built exclusively for BMX racing and exceeds CPSC & EN 14781 standards.

  • Colour: Matte Black/Pink/Grey
  • Lead Time: 0
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
New Rider?
FREESTYLE VS RACING BMX BIKES?

Choosing the correct bike for your discipline is extremely important, and sometimes for those new to the sport it can be difficult to know or decide, so we’ve broken down the main differences to help you make a decision.

Freestyle bikes are designed for the skatepark, the streets or the trails.  They are constructed from strong, hard wearing materials and usually feature Steel or Chromoly frames.  This means that the bike can stand up to a certain amount of impacts and hard landings, but remember no bike is indestructible.  For riders looking to learn tricks and stunts, then a freestyle bike is the correct choice.

Race bikes are designed specifically with the track in mind, they are nimble lightweight machines for putting down quick lap times.  Typically, they are constructed from lightweight materials like aluminium and carbon fibre to keep the weight down and the rider at the front of the pack.  These bikes are strong enough for smooth landings on race and pump tracks but will not take the abuse that a freestyle bike would in concrete skateparks.  If you’re looking to set fast lap times or begin your competitive career on the track, a race bike is the right choice.

WHAT SIZE BIKE WOULD I NEED?

Choosing the correct size BMX bike is very important, bikes that are too large will be cumbersome and hard to manoeuvre and bikes that are too small can feel cramped and hard to keep under control.

Youth freestyle bikes are sized depending on the diameter of the wheel staring at 12” all the way through to 18”, at a 20” wheel the bike is considered an adult size.  Adult freestyle bikes are sized on top tube length, a 18.5” top tube is extra small for younger teenagers who have just moved up to an adult bike, a 20” top tube is small, 20.5” a medium and anything over a 21” is considered large.

Race bikes feature 20-inch wheels on all models, but the components and frame are sized dependent on age and height.  Youth race bikes start from a Micro size for very young riders and offer a range of sizes through to expert XL.  Pro size and upwards are considered adult bikes and are usually offered up to a Pro XXXL or larger for very tall riders.

We recommend consulting our height charts from the link below to help you choose your perfect sized bike:

FREESTYLE HEIGHT CHART

RACING HEIGHT CHART

WHAT LEVEL DO I NEED?

Choosing the right level bike for your riding ability is important.  Components that are not suitable for your level of riding can wear or fail much sooner than expected.  Although BMX bikes can look very similar, under the surface components and materials used can vary greatly.

All our bikes are cherry picked from the very best BMX specialist brands, and all our bikes are designed specifically for use at the skatepark or on the track.

FREESTYLE BIKES

For first time riders new to the sport our entry level bikes, priced from £200-£400, are perfect, most of these are made from high tensile steel which means they are still relatively strong, but can be slightly heavier than higher end models.  You might find you’ll want to upgrade to something lighter sooner than you’d think.  If you are planning on using the bike in rain or bad weather, we do strongly advise choosing a model with fully sealed bearings all round.

If you are already confident on a bike and have some experience in skateparks or performing tricks and jumps then we would recommend choosing a mid-range bike, priced from £400 to £700, with a full Chromoly frame, fork, and bars.  This will be lighter and stronger than an entry level model.

 For an experienced person that is already capable of performing most tricks and has previously owned BMX bikes then a high-end complete bike, or full custom would be suggested to meet the demands of this rider, these bikes are priced from £700 plus.

RACE BIKES

Our range of entry level race bikes are perfect for first time racers, usually priced between £200 and £400 most of these are constructed of heavier steel rather than aluminium. These are great to get a feel for the sport but would not be able to keep up in a competitive environment.

Our mid-range race bikes are the perfect for riders who are beginning their path to competitive racing.  Priced between £400 and £800 these are not quite the high-end steeds you see at national level races, but they all feature lightweight aluminium frames and are designed specifically with the racetrack in mind.

For experienced riders who are already racing confidently at a competitive level we offer a small range of high-end complete bikes.  These are usually priced between £800 and £1500 and feature many aftermarket components like carbon forks, disc brakes and folding tyres.  However, at this level we highly recommend building a full custom bike, usually costing between £1500 and £3000 all components can be chosen specifically with the rider in mind.  For help on building a custom bike give us a call or drop us an email!

CASSETTE OR FREECOASTER

One of our most frequently asked questions in freestyle is, which rear hub do I want, a freecoaster or a cassette?  Most experienced riders know their preference, but if you’re new to the sport it can be difficult to know which choice to make.

The main difference between the two is the way the bike performs when going backwards.  A traditional cassette hub requires the rider to pedal in time with the rotation of the wheel while travelling backwards, while a freecoaster allows the rider to travel backwards while keeping the pedals level in the same position as riding forwards.

Although this may seem like a brilliant feature, it does come at a price!  Freecoaster hubs feature a “Slack” before engagement while pedalling forward.  This means that you can turn the crank a set amount (Usually an adjustable amount) before the drivetrain engages.  This is referred to as the “Slack”, when riding backwards you must keep your feet positioned within the slack, if your pedals rotate too much the drivetrain will engage and your pedals will start to rotate.  The smaller the slack, the harder it is to keep your pedal positioned within it while riding backwards.  This means that certain tricks are harder to perform, especially those that rely on pedal pressure, for example Tire Taps.
