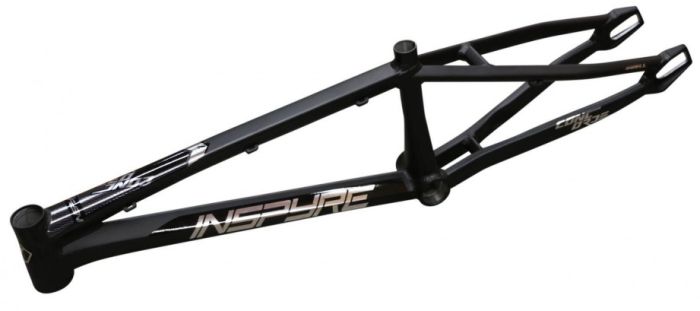

Inspyre Concorde V2 BMX Race Frame

In stock
SKU
INSP-FRME-CNCD2
As low as £299.99 Regular Price £499.99

The Concorde V2 has adopted new geometry but the DNA of the Concorde is still present featuring a few small tweaks which help improve handling and responsiveness. Inspyre wanted a frame that really was disc brake ready and that’s ...... Read More

ColourIridium Silver
Size
Top tube size
Or
Apply Remove

The Concorde V2 has adopted new geometry but the DNA of the Concorde is still present featuring a few small tweaks which help improve handling and responsiveness.

Inspyre wanted a frame that really was disc brake ready and that’s why the brand has decided to use a closed dropout in order to avoid any bending issues due to disc brake power. This new dropout is 25% stiffer than our previous version thanks to the brand-new shape meaning the seat stays can be welded above the axle, providing more strength and stiffness. On the track you can really feel the difference. Disc models are supplied with no V-Brake mounts meaning no adjustment limit, and possibility to utilize the full 25mm of SWELL dropout.

Compatible with 50t chainring and 18t cog. No more chain issues even in 50t. Wider seat stays offer more clearance and additional stiffness.

On the youth and cruiser models the tubes have been adapted to the needs and to the morphology of the riders. Offering a lighter frame in the Expert, Expert XL versions, while the cruiser models are stiffened at the bottom bracket to help support the longer length tubes.

  • 10mm/15mm and 20mm dropout compatibility.
  • DISC version incompatible with V-brakes.
  • Delivered with Inspyre axle tensioner kit and Pride Racing V4 disc dropout.
  • Inspyre strongly advises against washing its products with a high-pressure jet.
  • Inspyre declines all responsibility in the event of torsion or breakage of the rear bases in the event of the Pride Racing V4 dropout not being used.

Specs:

Expert Sizes use a Euro Bottom Bracket, 1 1/8” headtube, 22.2mm seat tube, 71° Seat Angle, 73° Head angle and 11” BB height.

Pro Sizes use a BB86 Bottom Bracket, 1.5” Tapered headtube, 27.2mm seat tube, 72° Seat Angle, 74° Head angle and 11.5” BB height.

Cruiser Size use a BB86 Bottom Bracket, 1.5” Tapered headtube, 27.2mm seat tube, 70° Seat Angle, 73.5° Head angle and 11.9” BB height.

Expert:

  • Rider Area: 545.6mm
  • Top Tube: 19.5”
  • Chainstay: 13.29”-14.27”

Expert XL:

  • Rider Area: 558.9mm
  • Top Tube: 20.15”
  • Chainstay: 13.29”-14.27”

Pro:

  • Rider Area: 562.6mm
  • Top Tube: 20.65”
  • Chainstay: 14.17”-15.16”

Pro XL:

  • Rider Area: 575mm
  • Top Tube: 21.25”
  • Chainstay: 14.37”-15.35”

Pro XXL:

  • Rider Area: 585mm
  • Top Tube: 21.75”
  • Chainstay: 14.69”-15.67”

Pro XXXL:

  • Rider Area: 595.9mm
  • Top Tube: 22.25”
  • Chainstay: 14.69”-15.67”

Cruiser:

  • Rider Area: 617.4mm
  • Top Tube: 21.85”
  • Chainstay: 14.96”-15.94”
